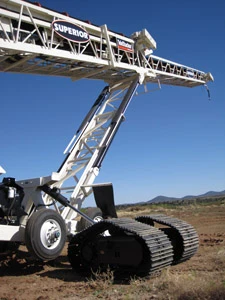

Radial Travel Tracks


Superior Industries is introducing a new conveyor mobility option – Radial Travel Tracks. When applied with the TeleStacker conveyor, the option allows high-capacity radial stockpiling in applications, such as low pressure soils, sand or wet clay, where maximum flotation and traction is required. The Radial Travel Tracks is a highly suitable and cost-effective mobility option for gold and copper heap leach operations particularly. Note that when combined with the new track-mounted Mobile Pivot Base conveyor mobility option, producers realize the ultimate in mobility with the combination of free-ranging onsite and transfer point mobility, as well as radial travel capability – all while reducing the need for haul trucks and loaders, and additional labor and material handling.

Engineered for easy, simple bolt-on installation, the Radial Travel Tracks option can be retrofitted onto existing conveyors in the equipment fleet; and can provide the versatility for site to site operation no matter what the soil conditions.
Consisting of two 24-inch steel tracks on each side of the conveyor, the Radial Travel Tracks attach directly to the FD axle radial fold-down arms, and are easy to remove for road portability. The system is designed to reuse existing planetary drives and is equipped with hydraulic hoses and fitting connections.
