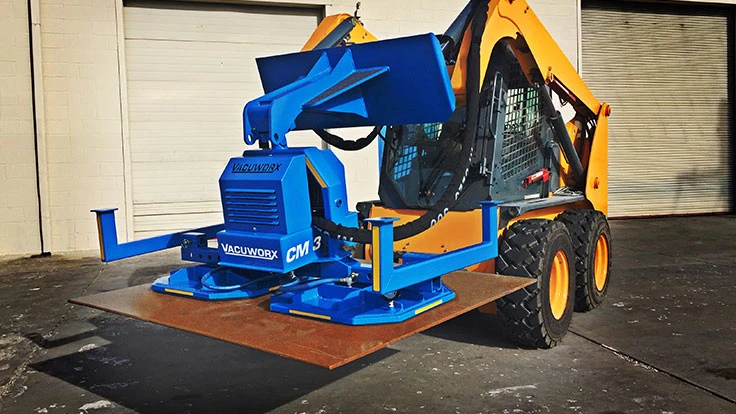

The new CM 3 compact modular vacuum lifting system from Vacuworx, Tulsa, Oklahoma, is made for contractors who run compact equipment such as skid steers, track loaders, articulating wheel loaders and mini excavators on the job every day.
With a modular design and lift capacity of up to 6,600 pounds depending on the pad—or pads—used, the CM 3 is designed to be adaptable to a wide range of applications including concrete slab removal, road or trench plate placement and some pipe applications. The CM 3 with standard mounting plate weighs the same as a standard skid steer bucket.
The all-steel unit is designed to accommodate single or double pad configurations interchangeably. The adjustable spreader bar for double pads extends from 61 inches to 85 inches. Flat and pipe pads are sold separately to fit your specific needs.
The CM 3 is operated by a hydraulically driven vacuum pump using the auxiliary hydraulics from the host machine (minimum 10 gallons per minute required with maximum 3,000 pounds per square inch). With quick-connect hydraulic hoses and a universal mounting plate assembly, the CM 3 can be attached to a variety of host machines. In addition, the unit is equipped with a factory pre-set flow control valve to ensure the ability to perform with any equipment. The CM 3 comes with steel legs for storage, which can either be removed or rotated up when the system is in use.
