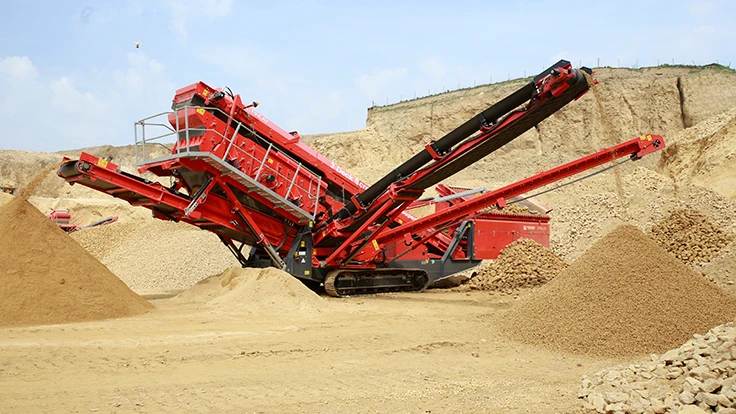

The Louisville, Kentucky-based Terex Finlay’s Terex Finlay 674 is a compact machine that offers operators rapid set up and tear down times. The new screenbox on the Finlay 674 features three inclined decks (top and middle deck: 12 feet by 5 feet), bottom deck (10 feet x 5 feet), giving a large screening area of 170 feet and 2 inches designed to provide efficient screening and high capacity.
The screenbox features quick wedge tensioning (top and middle deck), access holes and bottom deck hydraulic tensioning system to reduce time required for mesh changes. All four discharge conveyors hydraulically fold for transport providing the operator with rapid set up and tear down times. The fourth product’s “oversize plus” conveyor can work at varying angles to accurately discharge material for recirculation and stockpiling.
- Triple deck screen with galvanized all round fixed catwalk access for ease of operation and maintenance.
- The fourth (oversize plus) conveyor can work at varying angles and can accurately discharge for recirculation to crusher or for stockpiling.
- Screen box angle can be hydraulically adjusted to an angle between 18º and 37º
- Maximum utilization of three decks provides ultra-efficient screening capabilities even at small aggregate sizes.
- Updated hopper and belt feeder gives improved material flow onto main conveyor.
