TSR80 Radius Lift Path Skid Steer Loader

TSR80 Radius Lift Path Skid Steer Loader

April 23, 2012

Terex Corp.

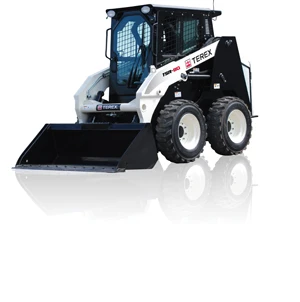

The Terex TSR80 radius lift path skid steer loader has an 83-horsepower, turbocharged Perkins engine with load sensing, variable flow hydraulics and has a rated operating capacity of 2,250 pounds with 125 inches of lift height and 24 in of reach. The engine and hydraulic combination on the TSR80 offers 8,700 pounds of tractive effort, giving the wheels on both units’ excellent pushing abilities, says the company. The push power and loader breakout forces on Terex radius lift path skid steer loaders allow these units to perform digging and grading tasks efficiently, the company adds.

The TSR80 offers 10.5-inch ground clearance and a 26-degree rear angle of departure. These features improve the ability of the machine to traverse soft, uneven terrain, making the workday more productive and less frustrating, says Terex.

For quick cycle times, a powerful drive train with optional 2-speed transmission propels Terex loaders to the fastest top speeds in their class — up to 12 mph. Terex loaders also offer a 30-gallon fuel tank on the TSR80.

More information is available at www.terex.com.
